Indoor Network Cabinet Featuring Fully Enclosed Rack With 720 Core Capacity

Application:

GPX(04)A Series is suitable for large capacity wiring requirement, such as FTTX local orbranch point. Can be configured with optic splitter modules, easy to achieve optic splitting.

Feauture:

1. Fully enclosed standard rack, with a maximum capacity of 720 cores.

2. There are inlet holes at the bottom and the top of the rack, which can determine the cable approach according to the need for convenient use.

3. Integrated fusion and distribution wiring unit: Snap-in-type installation of FC, SC adapter, convenient and fast, beautiful. Each unit can be drawn out separately to meet the needs of off-shelf and on-shelf operation.

4. The management of optical cables, pigtails, and jumpers is well-structured, ensuring good performance even at high capacity levels.

Technical index:

a. Environmental requirement:

• Working temperature: +5℃～+40℃
• Relative humidity: ≤85%(+30℃)
• Atmospheric pressure:70KPa～106Kpa

b. Main technical specification:

• Insertion loss:≤0.2dB
• UPC Return loss:≥50dB
• Insert and plug durability:＞1000
• APC Return loss:≥60dB

c. Thunder protective specification:

• High-pressure protection device of cabinet is insulation with cabinet's frame,Insulation resistance is not less than 1000MΩ/500V(direct current)
• Withstand voltage between High-pressure protection device of cabinet and frame is not less than 3000V(direct current)/min no breakdown and no flash-over.

Specification:

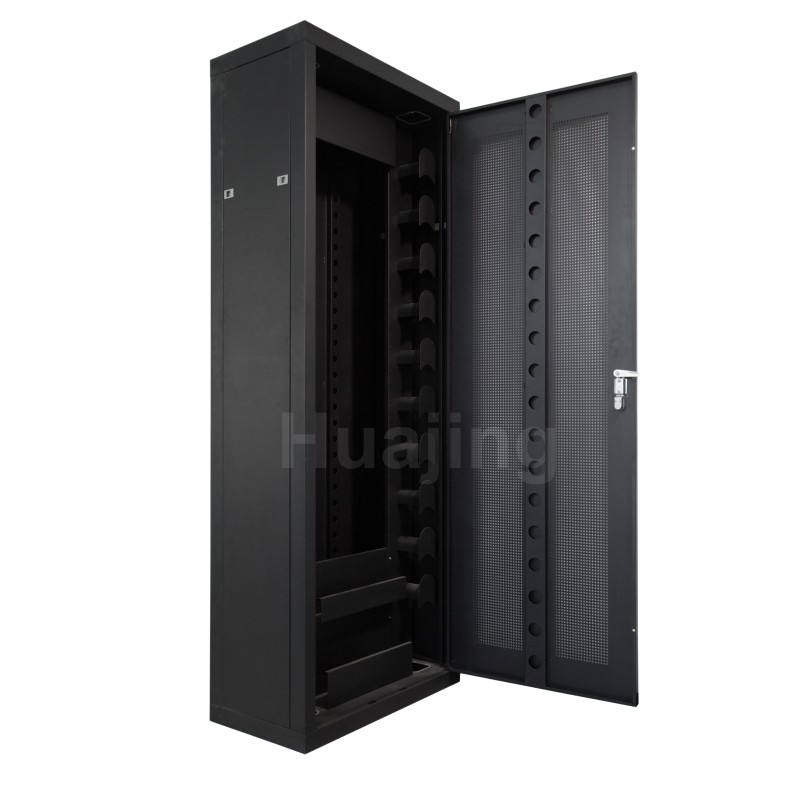

Indoor Network Cabinet Featuring Fully Enclosed Rack With 720 Core Capacity Images
